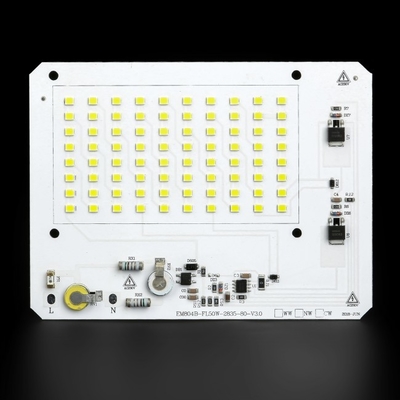

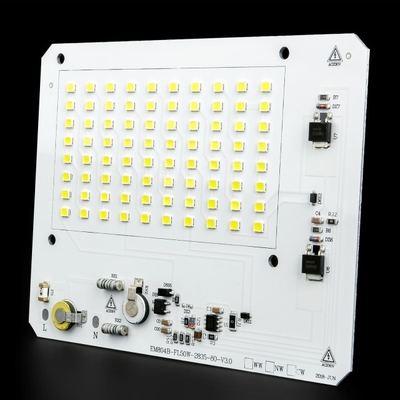

Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light

Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light

  • Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light
  • Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light
  • Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light
Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light
Detail produk:
Tempat asal: Shenzhen
Nama merek: RYGH Tech; OEM or ODM available
Sertifikasi: CE, ROHS
Nomor model: RYGH804C-FL100W-2835-135-V3.0
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1pc
Harga: USD4.62/PC
Kemasan rincian: Karton kertas + Busa, standar ekspor
Waktu pengiriman: Pesanan sampel 5-7 hari, pesanan massal 7-15 hari kerja
Syarat-syarat pembayaran: T / T, Western Union, paypal, MoneyGram
Menyediakan kemampuan: 5000 lembar / kuartal
Kontak
Detil Deskripsi produk
Kekuasaan: 100watt tegangan: AC 180-300V
Chip: Taiwan Bahan: Aluminium
CCT: 2700K-7000K Suhu bekerja: -30-55 ℃
perlindungan: OVP, OCP, OTP Sudut balok: 140°
Menyoroti:

exterior parking lot lighting

,

parking area lighting fixtures

Board 100w 11000lm economy 80ra aluminum apcb DOB LED Light for Flood light

The DOB is configured to arrange the LED light source and the driving circuit on the same substrate. The HVLED can connect the light source in series with the mains, so that the number of parts of the LED driving circuit can be reduced, thereby saving space. Seoul's Acrich technology is also a high-voltage LED + segmented constant current IC drive mode, which is the same concept as the DOB (Driver on board) technology on the market.



Part no. RYGH804C-FL100W-2835-135-V3.0
LED Power 100Watt
Voltage AC 180-300V
Light Source Taiwan (Vendor of Aurora)
Power Factor FP>0.98
Working Temperature -30-55℃
Dimen-sion (mm) W110mm*162mm
CCT 2700K-7000K
Components life time 100,000 hrs
CRI >80
Beam Angle 120°
Chip Epistar 2835, Osram 2835
Material AL thermal conductive 1.6
LED Quantity 135pcs
Flicker Yes
Warranty 5 Years


Our Advantages:

Advantages:
1, Our engineer has 15 years experience in led lighting field
2, 6 years focus on AC linear led lighting
3, 3nd Generation Linear IC from Top Taiwan Team-Vendor of AURORA Lighting
4, Driverless led lighting already worked 4-5 years all over the world, failure rate <0.5%, you can sleep well at night because very few complaints
5, Working voltage max 300V, other company max 265V
6, With Over voltage protection, over temperature protection, short circuit protection, over load protection
7, Pass Safety Certification, EMC/EMI
8, 4KVA Surge Protecion on board, 6KVA and 6KVA SPD available
9, 5 years warranty,
10, Can be work in harsh environment from minus 30 degrees to 50 degrees
11, High voltage, low working current, no capacitor, no shocking current when turning on, very few interference on power grid, low temperature on power lines
12, Easy for maintenance, easy to change a DOB if failed
13, 99.9% solid components, life time 100, 000 hours, much longer life time than LED
14,much higher cost performance than MEANWELL driver, lumileds and OSRAM Chip warranty 5 years
15, No spark when switching, , which can be used as explosion proof lighting
16, We know and protect our product like our child, and vitnessed the change and improvement of our product in last 6 years
17, We insist on updating our DOB Technology



Application:

High way/Park/Street/Roadway/Parking Lot/Public square/ plaza/Campus/Airfield/Farm & Ranch/Remote Area/Military Base/Goverment project for special use etc.





Why choose us:

Direct Marketing

Timely feedback, sincere service

TUV/ CE/RoHS/PSE/FCC Certificate

Low Min Order Quantity

100% QC Inspection

Quantity Guarantee

Free OEM&ODM Service

Good After-sale Service

100% QC Inspection
